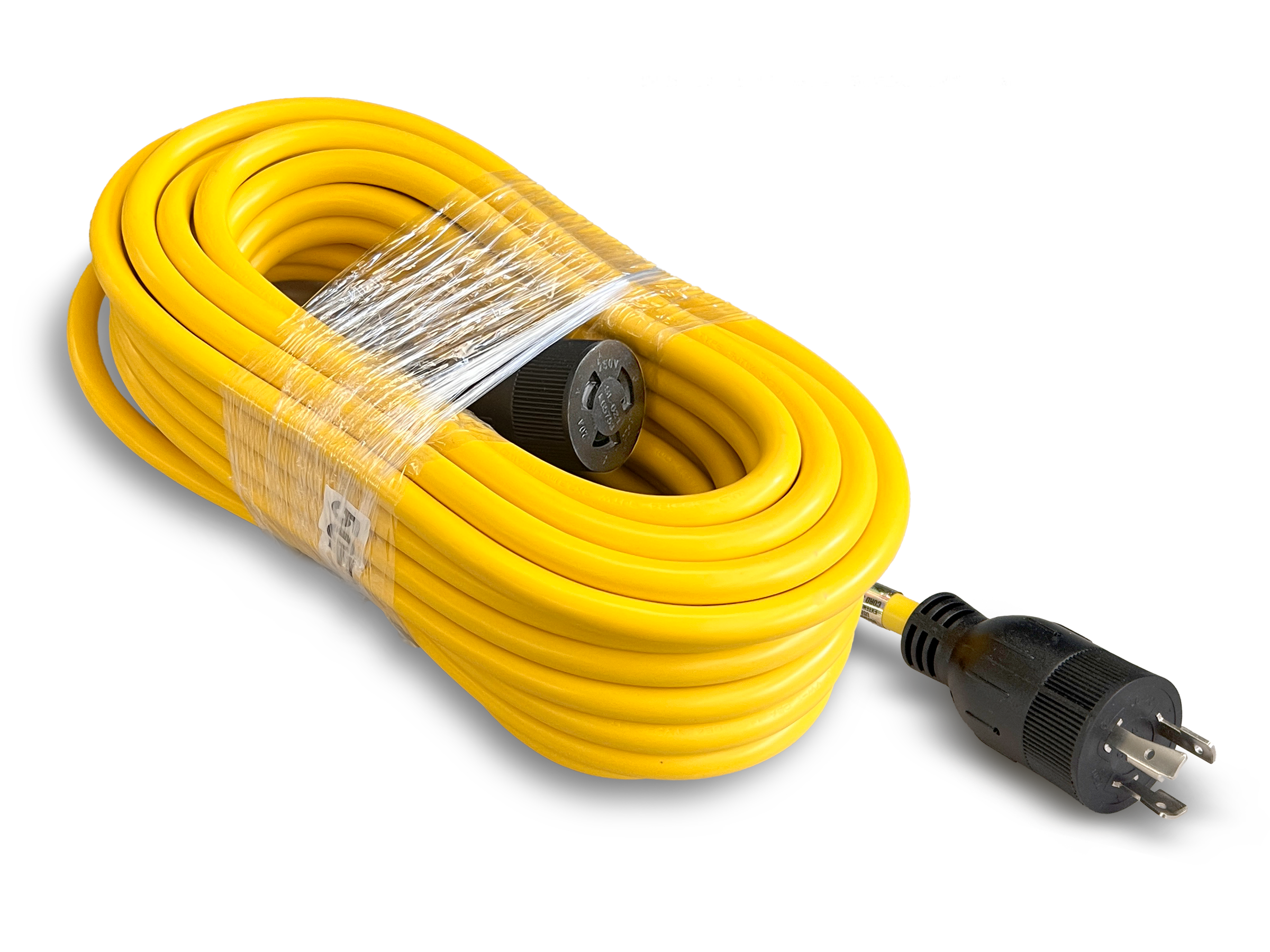

High Voltage GPU Extension Cord (LEC-50)

Heavy Duty Extension Cable for High Output GPUs

• 12GA copper wire
• Rated for 20A 250VAC
• Connector type: twist-lock L6-20


Why Use a Heavy Duty Extension Cable?

With the higher power demands of larger aircraft, it is essential to preserve the AC power between the breaker panel and the GPU. This means using a heavy-gauge, all-copper extension of the shortest possible length to minimize cable resistance and power loss to the GPU. If the extension cord is too long or too small a wire gauge, it will reduce the AC input voltage to the GPU at high-power and reduce its output.

High Voltage Service

All our GPUs are designed to accept worldwide AC input voltages from 90 to 264 volts, but operating at lower input voltages may limit the output current. With our high-output GPUs that can deliver more than 100 amps, you need a dedicated high-voltage electrical service of at least 200 volts to get full rated output.

An L6-20R twist-lock receptacle is recommended. If your hangar does not currently have this higher voltage circuit, it is not hard to install at your panel.

GPU Electrical Calculator

If you are wondering about how the quality and length of your cord affects the output of your GPU model, we have a calculator tool to help determine exactly what kind of power to expect with your setup.
