Airframe Interface Kit (BM-AIK1)

Airframe Interface Kit, included with our GPU with internal BatteryMINDer. Order this kit to connect GPU/BatteryMINDer to additional aircraft.

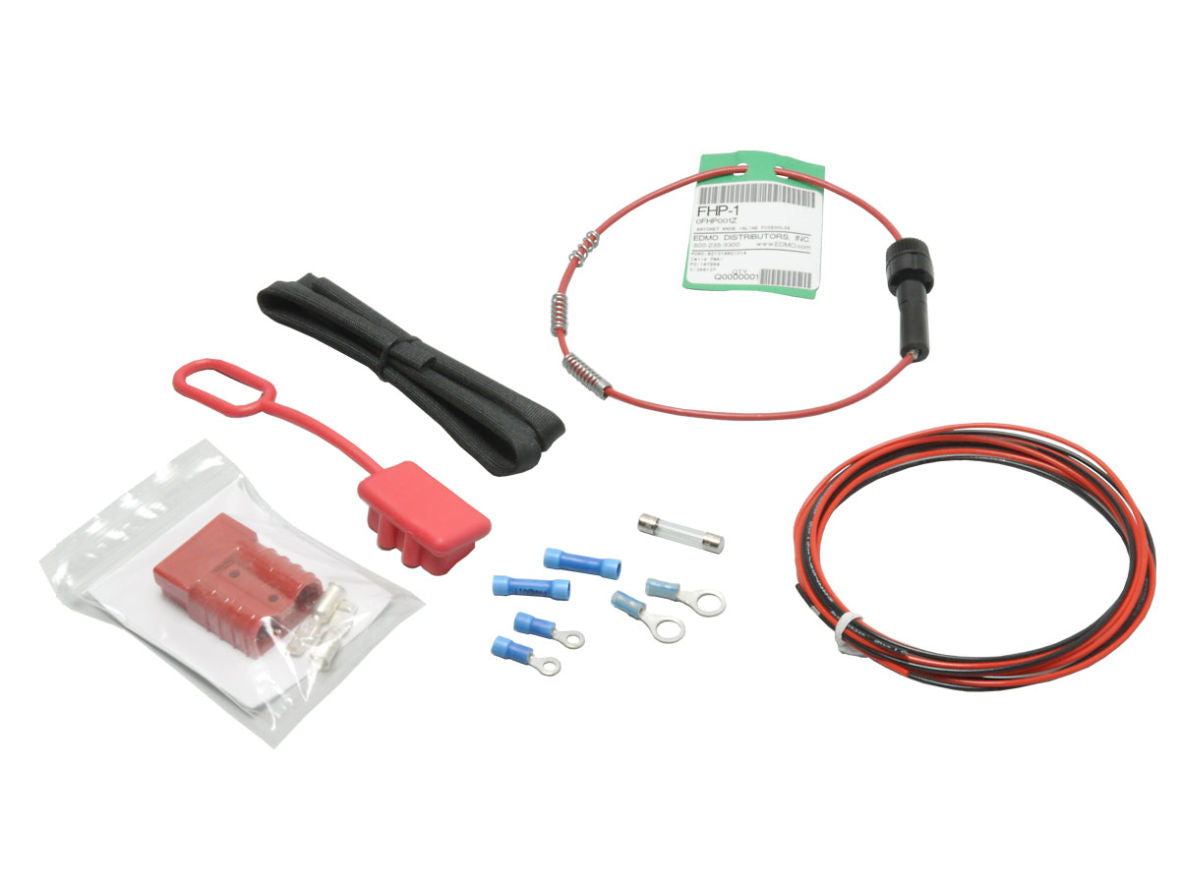

This aviation-grade parts kit is designed to install a battery charger harness on FAA certified aircraft. One kit is included with each BatteryMINDer-equipped GPU (Models 2870A-B2 and 2835A-B2). Order extra kits to install a BatteryMINDer-compatible harness on additional aircraft. This kit does not include the other half of the SB50 polarized plug - otherwise it is identical to BM-AIK2A. The video tutorial for the BM-AIK2A is also helpful for the BM-AIK1.

Note: This kit is not compatible with BatteryMINDer Model 28252 25A charger/power supply or any maintenance charger with output greater than 8-amps.

IMPORTANT: This harness is designed only for maintenance battery charging, not for supplying ground power for airframe operations. Disconnect the charger before turning on airframe electrical power. Reconnect the charger after turning airframe electrical power off to recharge and then maintain/desulfate the battery.

Videos

Why Certified Aircraft Need this
Quick Connect Harneess

Installation Examples

Examples

Installation, Saratoga - 806.07 KiB BM-AIK installation example on Piper Saratoga

Installation, Piper Meridian - 1.88 MiB BM-AIK Installation on turbine-powered Piper Meridian

Installation, Piper Malibu/Mirage/Matrix - 932.12 KiB BM-AIK Installation on piston-powered Piper PA46 aircraft

Installation, Pilatus PC12 - 700.09 KiB BM-AIK installation example on Pilatus PC12

Installation, Lancair/Columbia 400 - 330.24 KiB BM-AIK Installation on a Lancair/Columbia 400

Installation, Cirrus SR22 - 414.06 KiB BM-AIK Installation example on a Cirrus SR22.

Installation, Cessna 210 - 454.66 KiB BM-AIK Installation on a Cessna 210

Installation, Cessna 182 - 688.09 KiB BM-AIK Installation on a Cessna 182 G1000

Installation, Cessna 177 - 2.68 MiB BM-AIK Installation on a Cessna 177 Cardinal

Installation, Beechcraft A36 Bonanza - 743.23 KiB BM-AIK Installation on a Beechcraft A36 Bonanza

Installation, Beechcraft 58 Baron - 543.28 KiB BM-AIK Installation on Baron 58

Literature

Airframe Interface Kit Manual - 2.12 MiB Airframe Interface Kit for GPU integral BatteryMINDer. Updated 2024.
