Airframe Interface Kit (BM-AIK10A)

Airframe Interface Kit, included with our SmartGPU models factory-equipped with an internal BatteryMINDer (Models S28054-BMC24 and S28114-BMC24) or included separately as part of the BMC24 24-volt Battery Maintenance Charger kit.

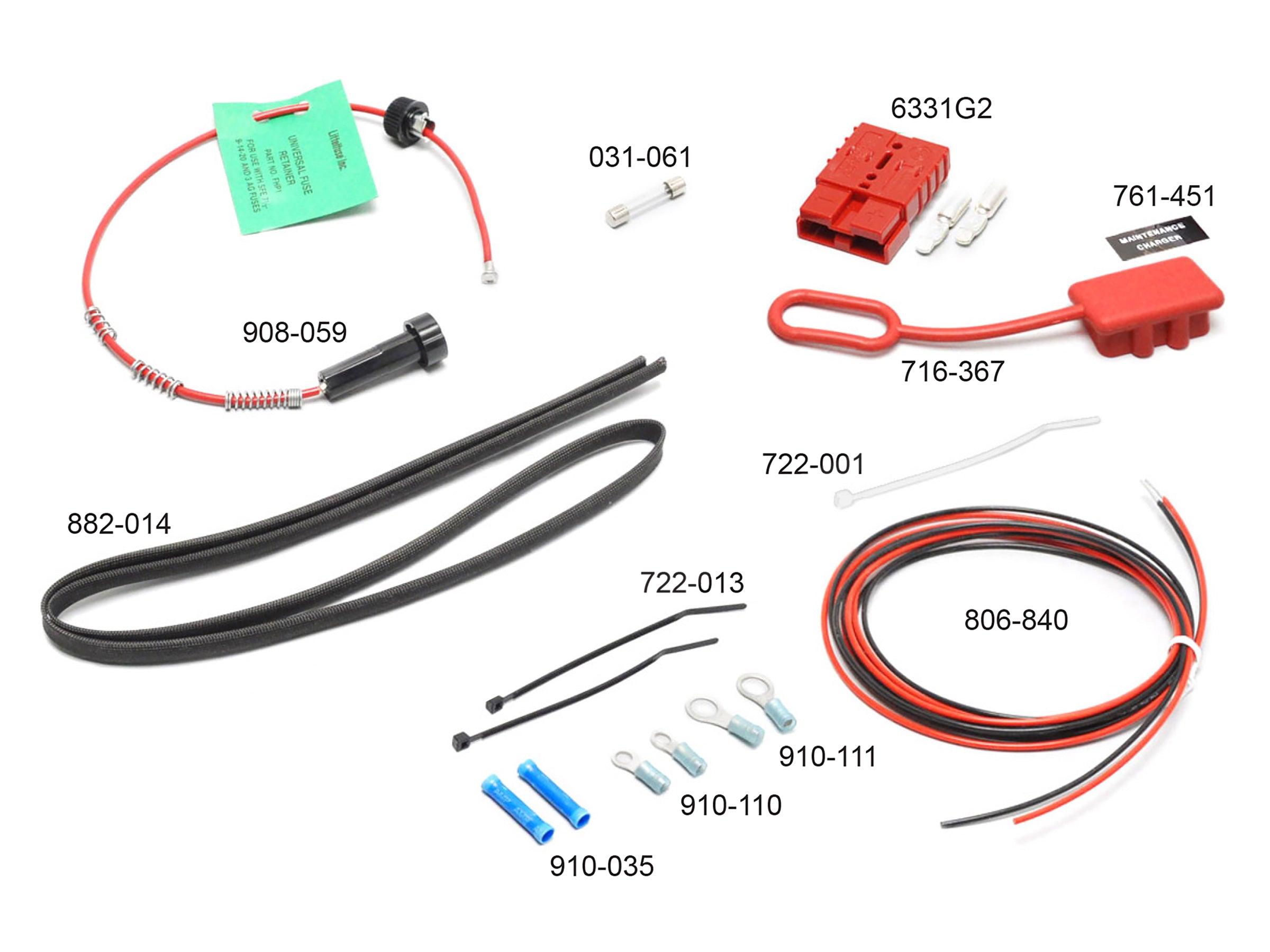

This aviation-grade parts kit is designed to install a battery charger harness on FAA certified aircraft. Order extra kits to install a BatteryMINDer-compatible harness on additional aircraft.

IMPORTANT: This harness is designed only for maintenance battery charging, not for supplying ground power for airframe operations. Disconnect the charger before turning on airframe electrical power. Reconnect the charger after turning airframe electrical power off to recharge and then maintain/desulfate the battery.

Videos

Why Certified Aircraft Need this
Quick Connect Harness

Installation Examples

Examples

Installation, Saratoga - 806.07 KiB BM-AIK installation example on Piper Saratoga

Installation, Piper Meridian - 1.88 MiB BM-AIK Installation on turbine-powered Piper Meridian

Installation, Piper Malibu/Mirage/Matrix - 932.12 KiB BM-AIK Installation on piston-powered Piper PA46 aircraft

Installation, Pilatus PC12 - 700.09 KiB BM-AIK installation example on Pilatus PC12

Installation, Lancair/Columbia 400 - 330.24 KiB BM-AIK Installation on a Lancair/Columbia 400

Installation, Cirrus SR22 - 414.06 KiB BM-AIK Installation example on a Cirrus SR22.

Installation, Cessna 210 - 454.66 KiB BM-AIK Installation on a Cessna 210

Installation, Cessna 182 - 688.09 KiB BM-AIK Installation on a Cessna 182 G1000

Installation, Cessna 177 - 2.68 MiB BM-AIK Installation on a Cessna 177 Cardinal

Installation, Beechcraft A36 Bonanza - 743.23 KiB BM-AIK Installation on a Beechcraft A36 Bonanza

Installation, Beechcraft 58 Baron - 543.28 KiB BM-AIK Installation on Baron 58

Literature

Airframe Interface Kit Manual - 2.26 MiB Airframe Interface Kit for GPU integral BatteryMINDer. Updated 2025.
