Aviation BatteryMINDer® 24-Volt (244CEC2-AA-S2)

Battery Charger/Maintainer/Desulfator
Aviation-Specific, 24-Volt, 1/2/4-Amp

Universally recognized as the best battery charger for lead-acid aircraft batteries, the BatteryMINDer is designed to leave connected to your aircraft battery continuously during hangar storage. Its output is temperature-compensated to guarantee optimal charging without risk of damage from overcharging. It then maintains the battery while conditioning by safely dissolving built-up lead sulfate crystals, restoring lost cranking power and extending battery life. "Plug-N-Run" design for automatic operation and restart after power failure. Not for use with NiCad, Odyssey or Gill LT batteries. Comes with battery clip & ring terminal harnesses for easy battery connections, suitable for bench connections or experimental aircraft.

Don't forget to order an airworthy quick connect wiring kit (BM-AIK2A) for installation on FAA certified aircraft.

Key Features:

Included Accessories:

• 2’ fused battery clip cord set with SAE connector for temporary/bench connection.
• ATS-1 ambient temperature sensor for use with certified aircraft (installed).
• Instruction manual.

Optional Accessories:

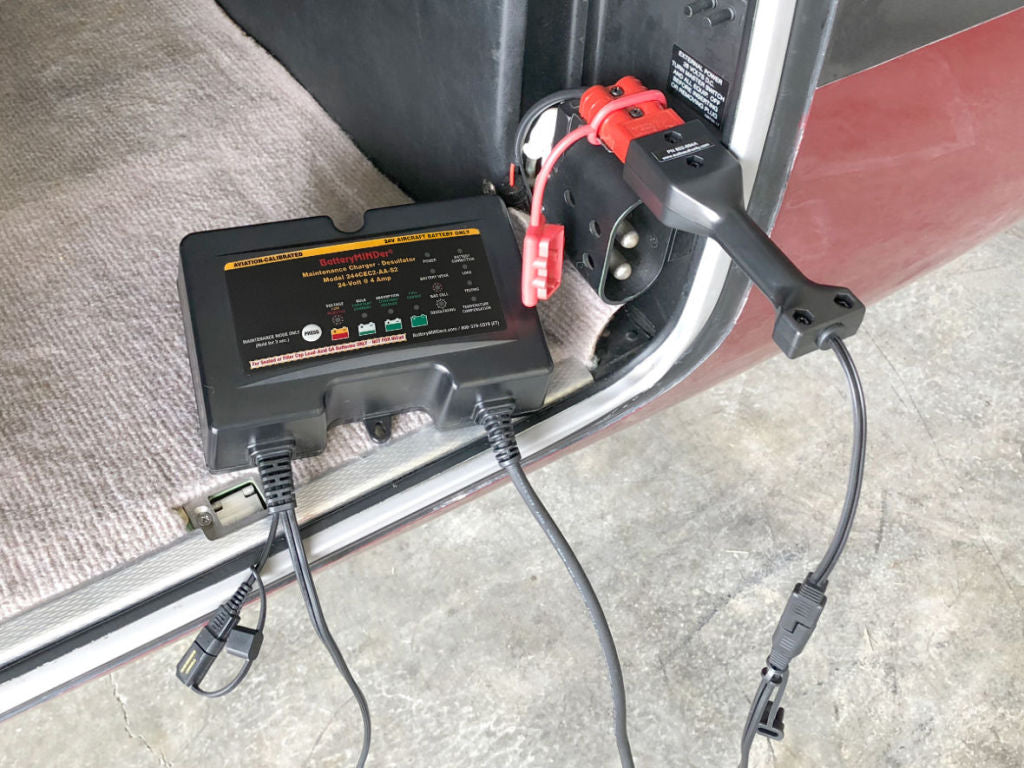

• Model BM-AIK2A Airframe Interface Kit for quick-connection to FAA certified aircraft.
• Model 670-530 wiring kit for Experimental/Amateur-built aircraft.

Videos

Tutorial: Extending Aircraft Battery Life

Why Certified Aircraft Need this
Quick Connect Harness

YouTube Video by Aero-TV
Expert Advice From Concorde Battery:

All Features

• Guaranteed never to over-charge, regardless of time or temperature (0°F - 130°F)
• Temperature compensation ensures proper charge in hot or cold environments
• Auto-selection for charge rate and battery types ensures 100% compliance with Concorde^® specifications
• Full-time pulsed desulfation in maintenance mode
• Maximizes battery life and capacity, reconditions weak batteries
• Plug and run operation
• Microprocessor controlled pulsed output ensures 100% full charge
• Battery diagnostics indicators
• Ultra energy efficient to keep operating costs low
• Automatic disconnect and resume if AC power is interrupted
• Short circuit, spark, polarity and thermal runaway protection
• 6’ AC input cord, 6’ DC output cord with polarized quick connector (SAE)
• 1 year 100% money back guarantee, 5 year “no hassle” warranty
• Input: 115VAC
• Safely charges up to 200% faster than conventional chargers
• Automatically dissolves power-robbing sulfation from lead storage plates using safe low voltage pulse technology (U.S. Patented)
• Temperature compensation extends battery life by more than 200 Cycles (full charge-discharge cycles) with ABS temperature sensor
• Vibration resistant, weather-proof enclosure - intrusion protected from water and dust per IEC STANDARD IP65

Literature

Manuals

244CEC2-AA-S2 Manual - 3.33 MiB Aviation-specific CEC2 Series BatteryMINDer manual.
